V-Mesh Fence

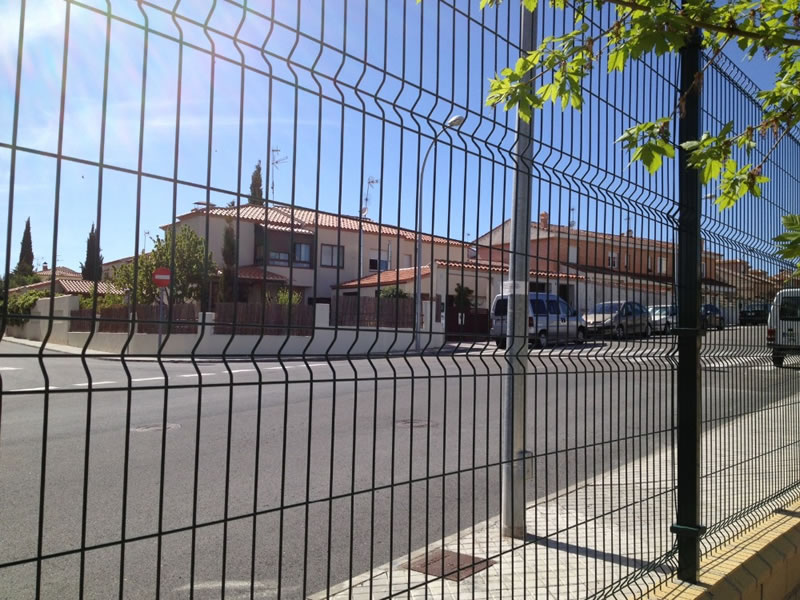

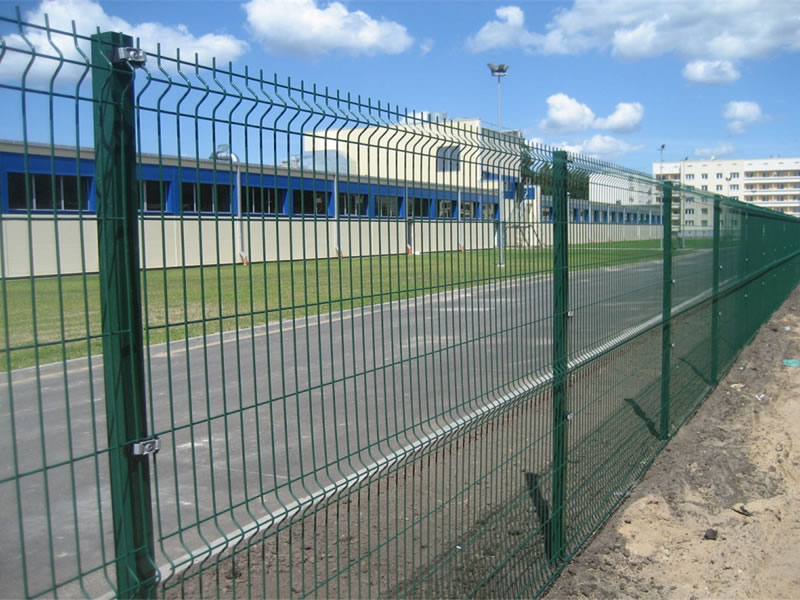

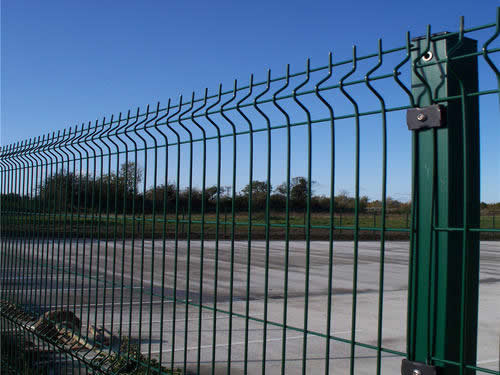

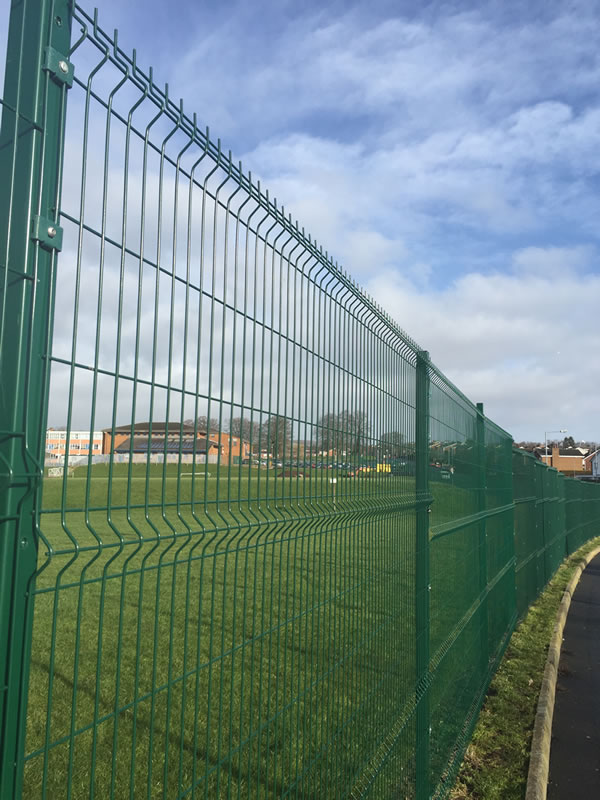

V-Mesh Fence is a type of welded wire mesh. It is made of high quality low carbon steel wire, galvanized wire or stainless steel wire connected to metal posts.V-Mesh Fence is a type of welded wire mesh has V-shaped bending curves, which look modern and attractive. The sturdy and sleek fence panel is mainly used for security protection in construction site, residential building, sports field, warehouse, highway or airport service area, railway station, etc.

Most people are like curvy welded mesh fence panel ,its beautiful and durable ,easy to install , also is economic .Its each panel is designed with a series of architectural “V” folds that reinforce the overall strength of the system.

Material:
Hot-dip galvanized steel wire
Hot-dip galvanized steel wire+power coated
low carbon steel wire+PVC coated

Surface Treatment:
Hot Dip Galvanized
Galvanized+ Polyester Coat

Color: Dark green RAL6005, Pure white RAL9010, Stone grey RAL 7030, Traffic red RAL 3020

Wire Diameter: 3.0mm, 4.0mm, 5.0mm

Mesh Opening: 50x100mm, 50x200mm

Panel Height: 1030mm, 1230mm, 1530mm, 1730mm, 1800mm, 2000mm, 2400mm

Panel Length: 2000mm, 2500mm, 3000mm

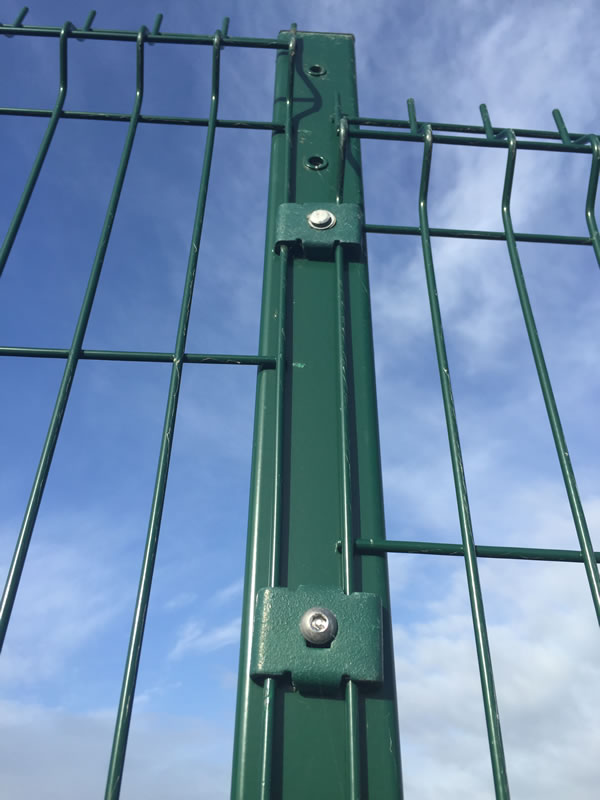

Fence Post:

Rectangle Post: 40*60*1.2mm, 40*60*1.5mm, 40*60*2mm

Square Post: 40*40*1.2mm, 40*40*1.5mm, 60*60*2mm, 60*60*2.5mm, 80*80*2mm, 80*80*2.5mm

Peach Post: 50*70*1.2mm, 70*100*1.2mm

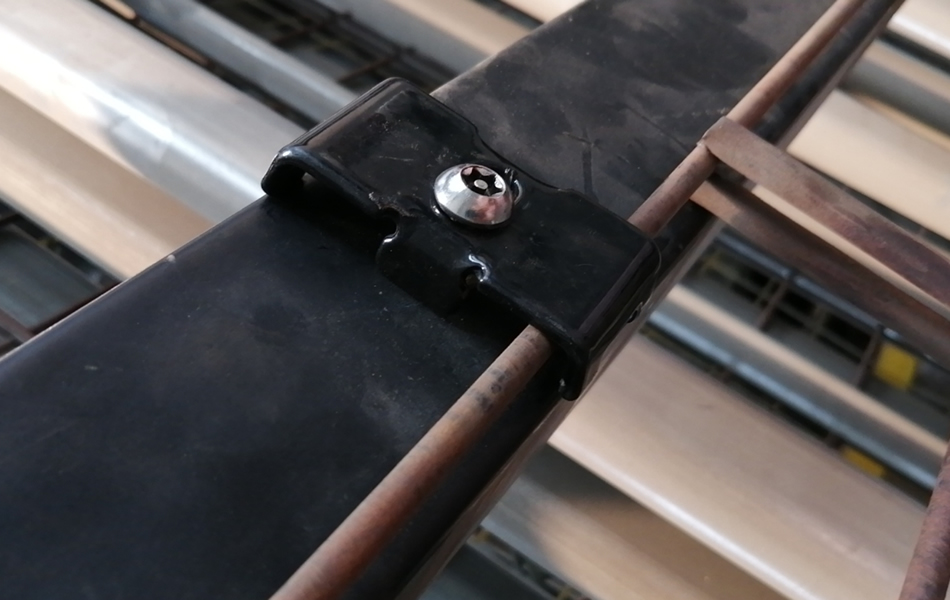

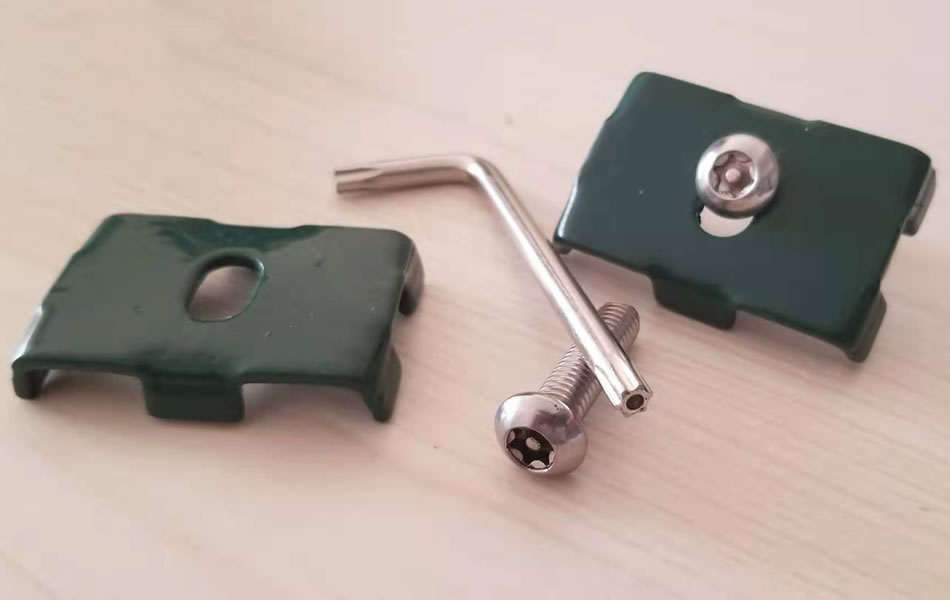

Fitting: Rain Cap, Clamp , Base Plate etc.
